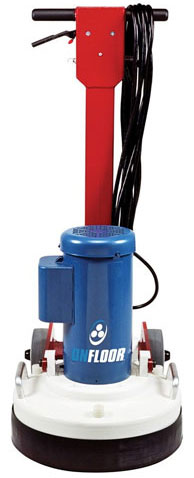

Onfloor 16 Floor Grinder / Scarifier / Sander

This is Onfloor 16 Floor Grinder / Scarifier / Sander comes complete with either the Red Diamond Concrete Plates OR The Carbide Scarifier blades. It runs on 115V and has a 16" head.

ONFLOOR™ Technologies presents Onfloor 16™ - a revolutionary new tool in floor preparation. More than just a sander, Onfloor 16™ helps bring new life to concrete surfaces, decks and hardwood floors. Onfloor 16™ is powerful enough for demanding industrial jobs, yet light and simple enough for home use. And the exclusive patented design of Onfloor 16™ works to provide superior results with minimum effort. So not only will you be sanding like a pro in just a few minutes, you’ll be finished just as quickly.

With Onfloor 16™, you can remove years of wear from just about any concrete surface. Our exclusive Red Diamond Concrete Plates are embedded with a coarse diamond grit that will quickly ready your floor for any coating application. And if your concrete floor has a coating that doesn't require removal, the Red Diamond Concrete Plates will abrade the surface and remove the gloss. Plus, when fitted with the powerful Carbide Scarifier Attachments, Onfloor 16™ helps remove most coatings and hard, brittle adhesives. The Carbide Scarifier blades are available for this machine as well.

Frequently Asked Questions

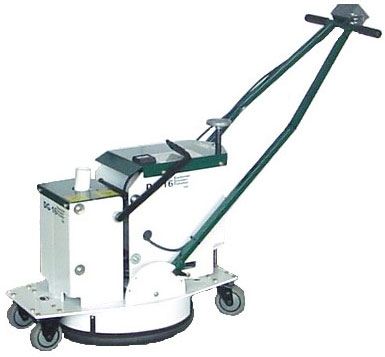

BW Manufacturing DG-16 Diamond Grinder / Polisher

The DG-16 has the ability to grind within 1" of a vertical surface. The flexibility between grinding and polishing, and the virtually dust free operation when connected to BW Manufacturing's A-101 Pulse Vac makes the DG-16 an excellent addition to the surface preparation contractors line of equipment. What sets the DG-16 Diamond Grinder/Polisher apart from all the others is the design, concept, and innovation. The DG-16 has a rubber mounted non-planetary grinding head that where down pressure controlled by spring pressure. With the combination of the wheels a floating, head and specially designed diamonds, you are able to grind or polis without scaring or gouging of the concrete, even on cracks and expansion joints. With the ease of diamond cutter and polishing pad installation and removal, the contractor won't lose production due to lengthy diamond tool changeovers. This machine is a 220 Volt Electric Unit.

FEATURES / SPECIFICATIONS:
• Cleaning Path: 16"
• Side grind clearance to wall: 1"
• Front grind clearance to wall: 6"
• Wheels: 2 - 4 Inch Rigid / 2 - 4 Inch Swivel
• Height: 29"
• Length: 24"
• Width: 18"
• Weight: 210 Lbs. (Electric) / 225 Lbs. (Gas)
• Motor Options: 5 HP 220 Volt single phase / 5 HP 440 Volt three phase /11HP Gas (Honda)
• Seal System: Brushes
• Control Handle: Fully Adjustable

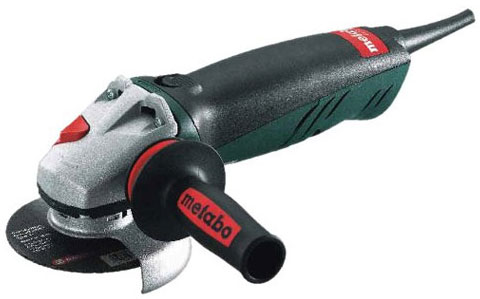

Metabo W7-115 4 1/2" Angle Grinder

• Switch with lock on capability
• Spindle lock
• Low profile aluminum die-cast gear housing
• Toolless guard adjustment
• 2-position side handle
• Metabo slip clutch - Prevents damage or injury that can occur if the wheel jams
• Auto-stop carbon brushes
• Winding protection grid
• Winding protection grid deflects dust away from armature increasing motor life up to 5 times
• Robust Metabo Marathon motor
• Die cast aluminum gear housing
• Metabo S-automatic torque limiting clutch
• Spindle stop
• Metabo "Quick" tool quick change
• Additional VibraTech handle for vibration damping
• Adjustment of protective hood without tools
• Ergonomic shape for fatigue-proof rough grinding
• Metabo winding protection grid
• Auto-stop carbon brushes

SPECIFICATIONS:
• Maximum wheel diameter: 4 1/2"
• No-load speed (RPM): 10000
• Amps: 8.0
• Rated input watts: 900
• Arbor size: 7/8"
• Spindle thread: 5/8" - 11
• Tool weight: 4.8 lbs.
• Shipping weight: 6.0 lbs.
• Length: 11"
• Standard Equipment side handle (31400054)
• Wheel guard (31602823)
• Flange nuts (34110148)
• Face spanner (23934)

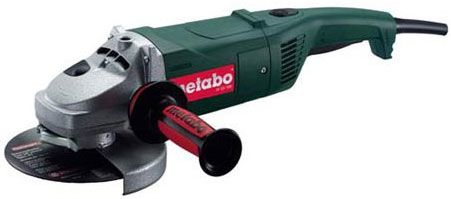

Metabo W23-180 7" Angle Grinder

• Robust Metabo Marathon motor
• High efficiency and increased torque through optimum heat dissipation
• Die cast aluminum gear housing
• Spindle stop
• Rotatable handle without tools
• Protective hood adjustment without tools
• Supporting strap adjustable according to application: left, right or up
• Metabo safety switch: Lock against unintentional start
• Metabo coil guard
• Auto-stop carbon brushes
• The best Metabo rough and abrasive grinding disc for any angular grinder application (accessory)
• Versatile applications through the extensive range of accessories

SPECIFICATIONS:
• Grinding disc diameter: 7 in.
• Torque: 14 Nm
• Speeds at no load: 8.500/min
• Rated input power: 2.300 W
• Output power: 1.580 W
• Speed at rated load: 5.800/min
• Weight (excluding mains lead): 4.9 kg

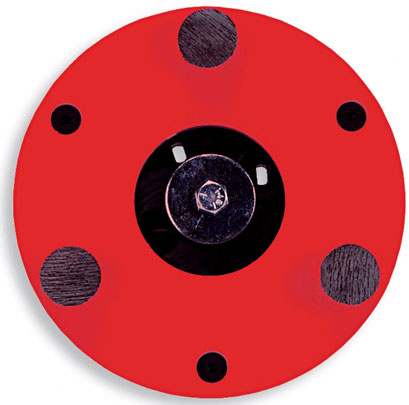

Onfloor Red Diamond Heads

DESCRIPTION:
The Onfloor Red Diamond Attachments are for new or old concrete, removes thin mil coatings, removes latents containments, and opens pores in unfinished concrete. Estimated coverage for a set of 3 attachments is 8000 sq. ft. Also used for abrading existing concrete for recoat.

SIZES:
• 6.5" - #492329
• 8" - #468509

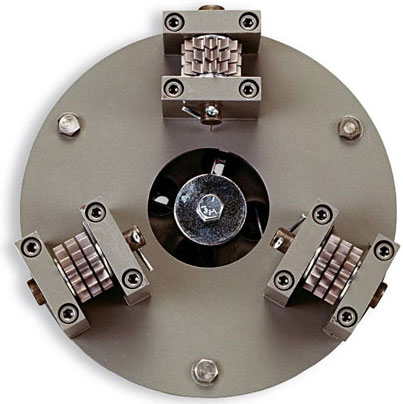

Onfloor Carbide Scarifier Heads

DESCRIPTION:
The Onfloor Carbide Scarifier Attachments are for removal of thin set coatings from concrete floors. 3 to a set. Carbide Scarifier Replacement Kits are also available as a special order item.

SIZES:
• 6.5" - #492353
• 8" - #492426

Onfloor 8 Way Carbide Scraper Heads

DESCRIPTION:
The Onfloor 8 Way Carbide Scraper Attachments are for removal of mastics from floors without creating scratch patterns. 3 to a set.

SIZES:
• 6.5" - #497797
• 8" - #497819

Onfloor Diamabrush Mastic Removal Tool

DESCRIPTION:
The Onfloor Diamabrush™ Mastic Removal Tool is designed to remove stubborn coatings from concrete, such as mastic, carpet or tile adhesive, thin-set and thin mil coatings like urethane or paint. No need to waste time and money on heavy grinding equipment or harmful chemicals. 3 to a set.

FEATURES:
• Uses diamond coated blades to grind tough coatings away.
• No dangerous and volatile chemicals are required.
• Simply apply water to eliminate dust and to flush debris away.
• Money saving replaceable blades.
• Designed to fit a wide variety rotary flooring machines.
• The Diamabrush™ Mastic Removal Tool has limited surface contact during use to retain sharp cutting points over the life of the tool.
• Removes mastic, carpet or tile adhesive, thin-set and thin mil coatings like urethane or paint.
• Rigid, exposed diamond cutting surface creates a level floor with normal use.
• Removes most unwanted low spots within the concrete.
• Low profile design enables tool to travel over gaps in the concrete.

SIZES:
• 6.5" - #235938
• 8" - #235954

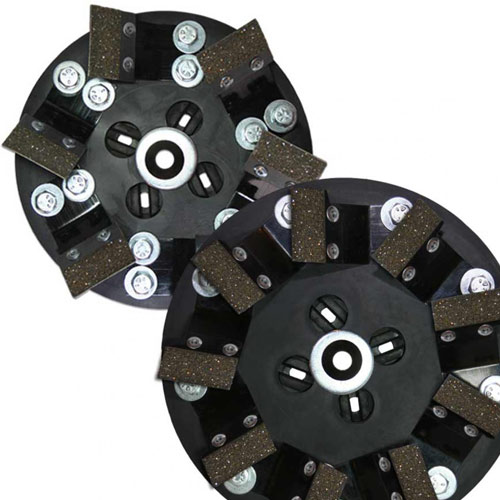

Onfloor Diamabrush Concrete Prep Tool

DESCRIPTION:
The Onfloor Diamabrush™ Concrete Prep Tool has a patented diamond 50/60 grit metallic blade. The blade is then bonded to metallic backing and assembled to flexible, spring-steel blade. The flexible blade allows the diamond to remain in constant contact with the floor, maximizing the tools effectiveness. Need to re-coat an epoxy concrete floor? This tool abrades existing epoxy floors, effectively preparing it for the re-coat application. 3 to a set.

FEATURES:
• Abrades existing epoxy coated, painted or bare concrete floors.
• Uses diamond coated blades to grind tough coatings away.
• No dangerous and volatile chemicals are required.
• Use with water to eliminate dust and to flush debris away.
• Money saving replaceable blades.
• Designed to fit a wide variety rotary flooring machines.
• The Diamabrush™ Concrete Prep Tool has limited surface contact during use to retain sharp cutting points over the life of the tool.
• Removes mastic, carpet or tile adhesive, thin-set and thin mil coatings like urethane or paint.
• Rigid, exposed diamond cutting surface creates a level floor with normal use.
• Removes most unwanted low spots within the concrete.
• Low profile design enables tool to travel over gaps in the concrete.

SIZES:
• 6.5" - #235946
• 8" - #235962

Onfloor Machine Weights

DESCRIPTION:
Weights for Onfloor surfacing machines.

SIZES:
• 16" Machine Weight - #491691
• 20" Machine Weight - #492442

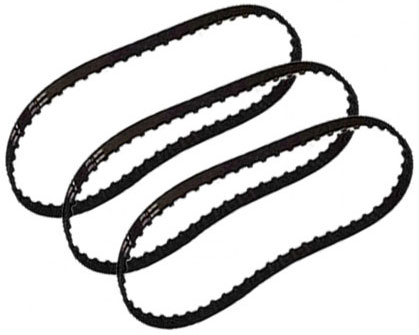

Replacement Belts for Onfloor Machines

DESCRIPTION:
Set of three replacement belts for Onfloor Floor Grinders.

SIZES:
• Kevlar Belts for 16" Machine - #494097
• Kevlar Belts for 20" Machine - #494070

Dust Skirt for Onfloor Machines

DESCRIPTION:
Replacement Dust Skirt for Onfloor Floor Grinders.

SIZES:
• Kevlar Belts for 16" Machine - #491640
• Kevlar Belts for 20" Machine - #491926

Velcro Backing for Skirt for Onfloor Machines

DESCRIPTION:
Replacement Velcro Backing Strip for Dust Skirt for Onfloor Floor Grinders.

SIZES:
• Velcro Backing Strip for 16" Machine - #491659
• Velcro Backing Strip for 20" Machine - #492019
